Types of Air Compressors

Positive Displacement - Air is trapped in a compression chamber and the volume is mechanically reduced, causing a rise in pressure.

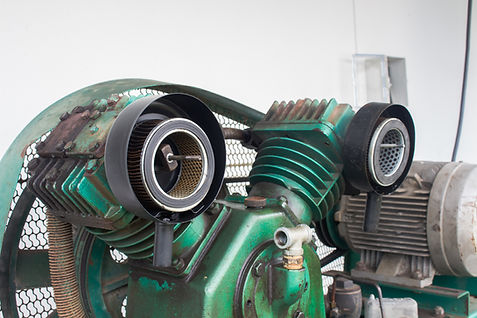

  • Reciprocating - Seen in the image to the right, a piston reduces the volume of the cylinder compressing the air to a higher pressure.

  • Rotary Screw - A male and female rotary screws mesh and compress the air as it moves along the screws. There are two types, Lubricant-Injected and Lubricant-Free.

Dynamic - Compresses air by imparting velocity energy and converting it to pressure energy.

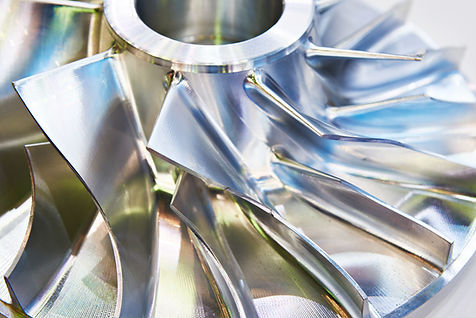

  • Centrifugal - An impeller rotates at speeds that may exceed 50,000rpm, the air is then reduced in a diffuser and volute.
